Artikelnr: 8.1063. Verzendklasse 6.

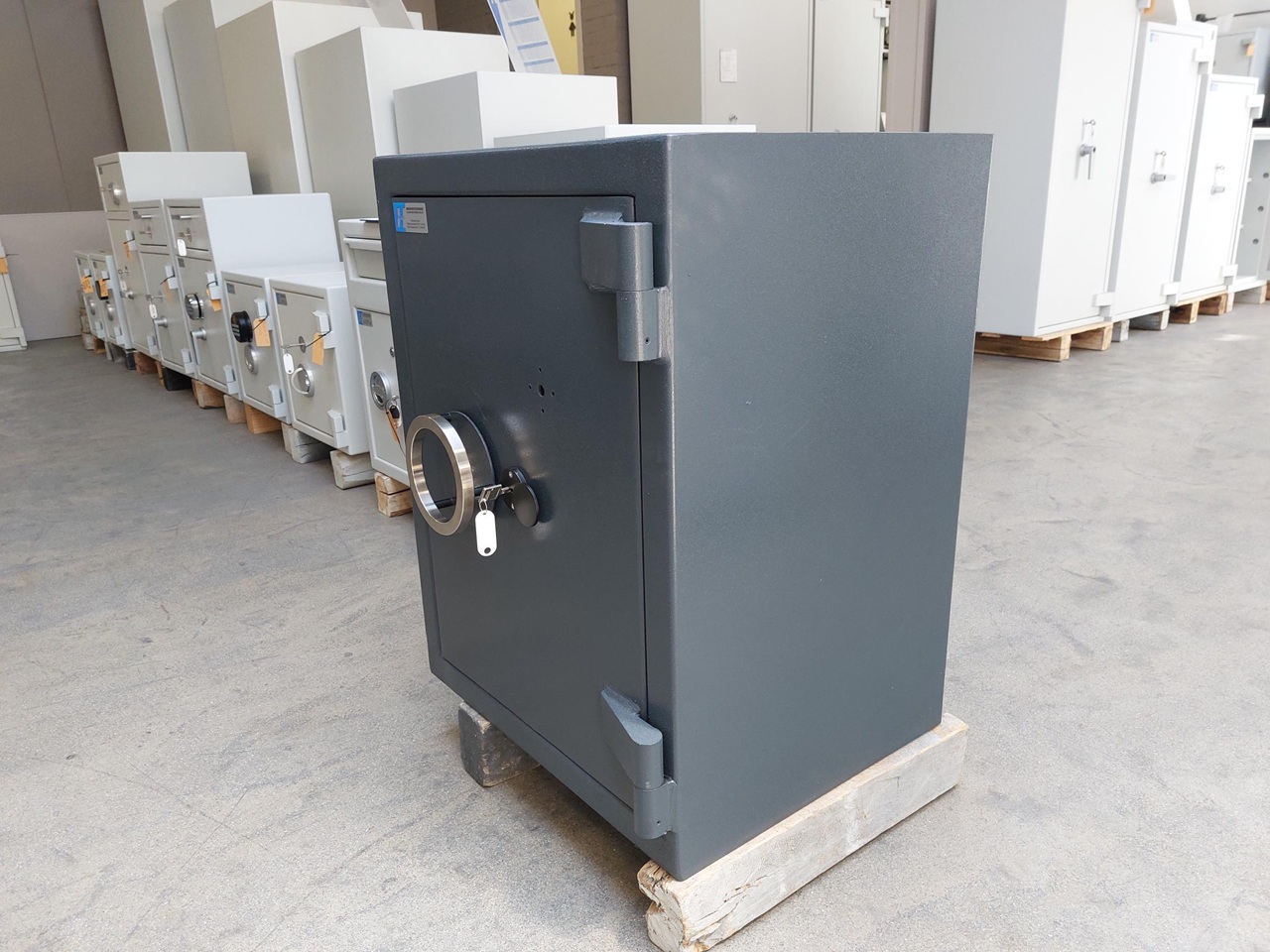

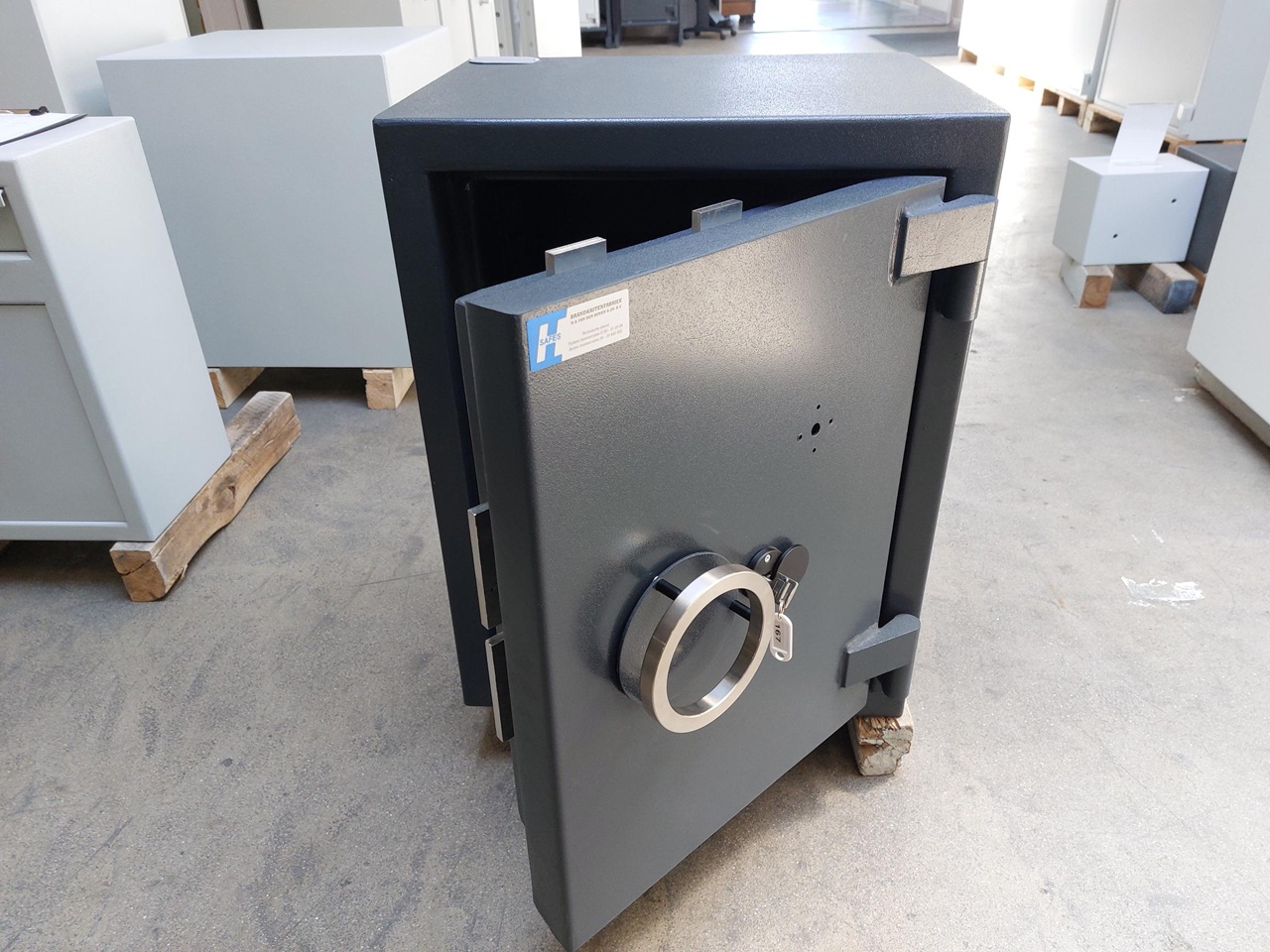

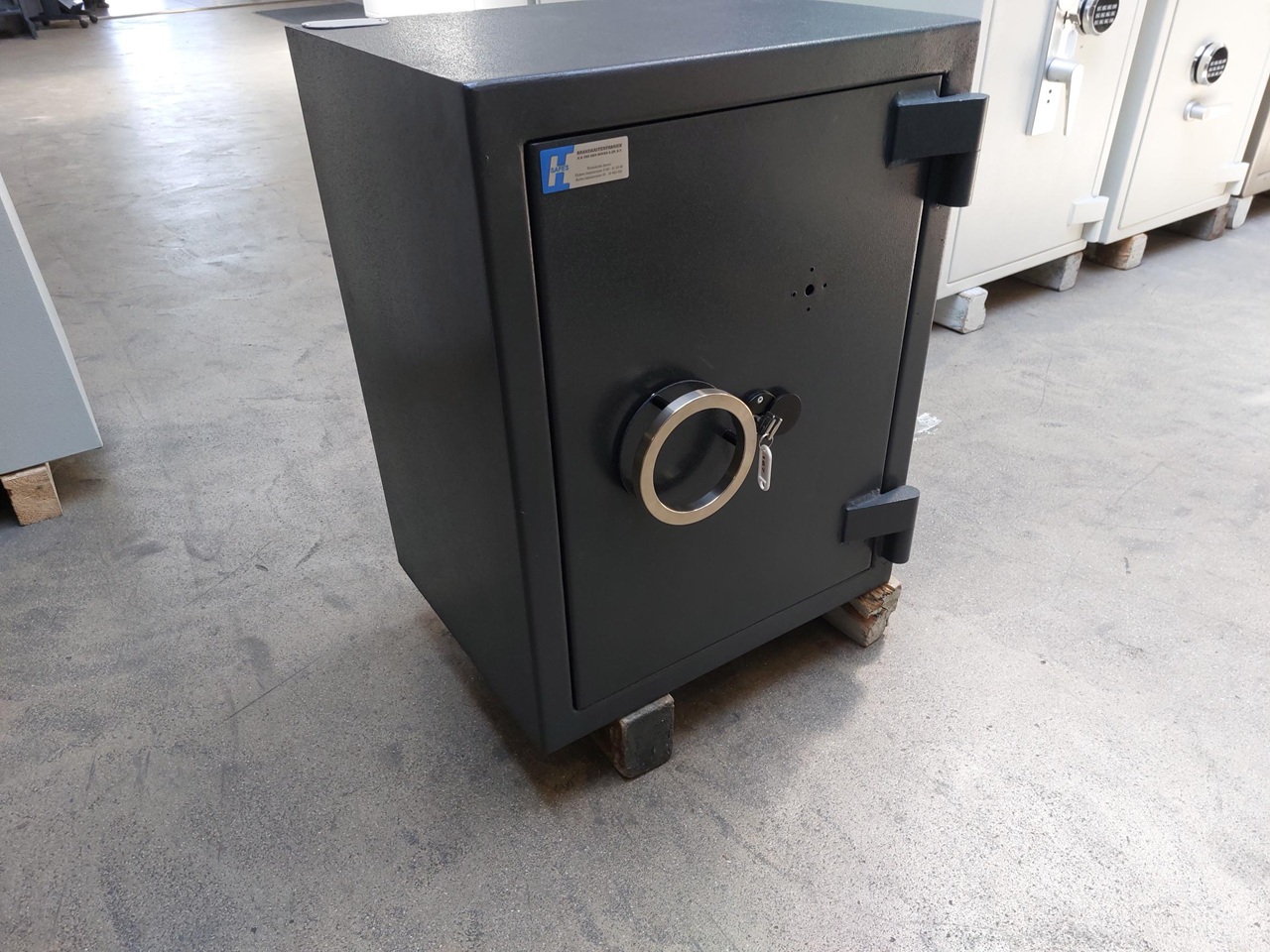

Merk van den Hoven, model VDH CB5 57.

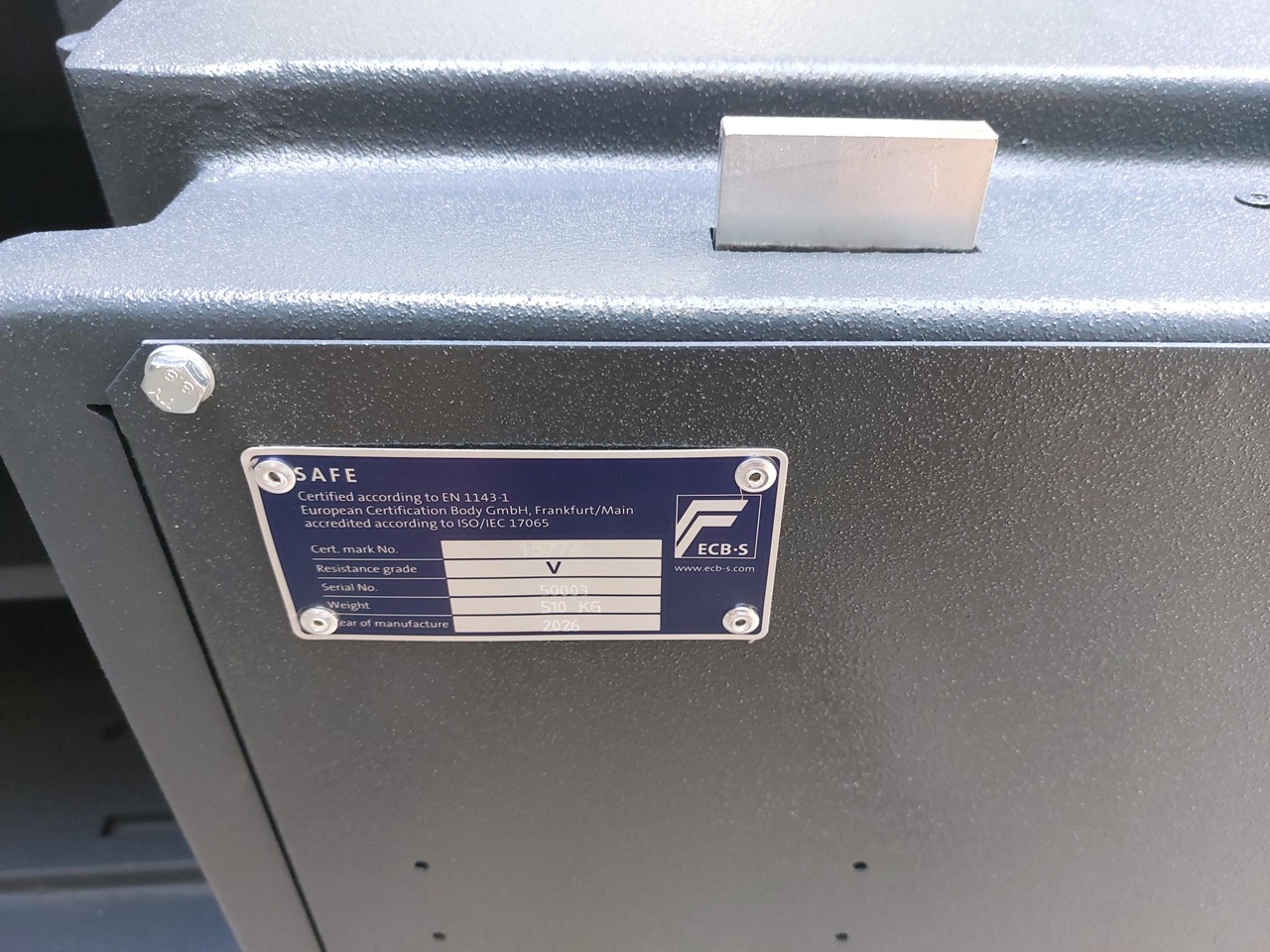

Certified burglar resistance according to EN 1143-1 standardisation class 5.
Coverage recommendation insurers based on standardisation € 125,000.00. Valuables insurance €250,000.00.
Fire protection according to Din 4102 standards approx. 30 minutes on paper for safe storage of valuables and documents.
Voorzien van een sleutelslot incl. 2 sleutels en een elektronisch cijferslot.
Indien gewenst is het mogelijk om de kluis bij plaatsing door Van den Hoven te laten verankeren aan de vloer d.m.v. 1 stuk chemisch anker aan de vloer.
| Burglar-proof | EN 1143-1 class 5 |
|---|---|
| Coverage indication | € 125.000,- |
| Valuables | € 250.000,- |
| Fire protection | DIN 4102 (30 minutes) |
| Locks | 1x sleutelslot incl. 2 sleutels |
| Outer dimensions | 700 x 550 x 450 ( + 60 mm. deurkruk ) H x B x D |
| Inside dimensions | 560 x 365 x 250 mm. H x B x D. |
| Content | 51 ltr. |

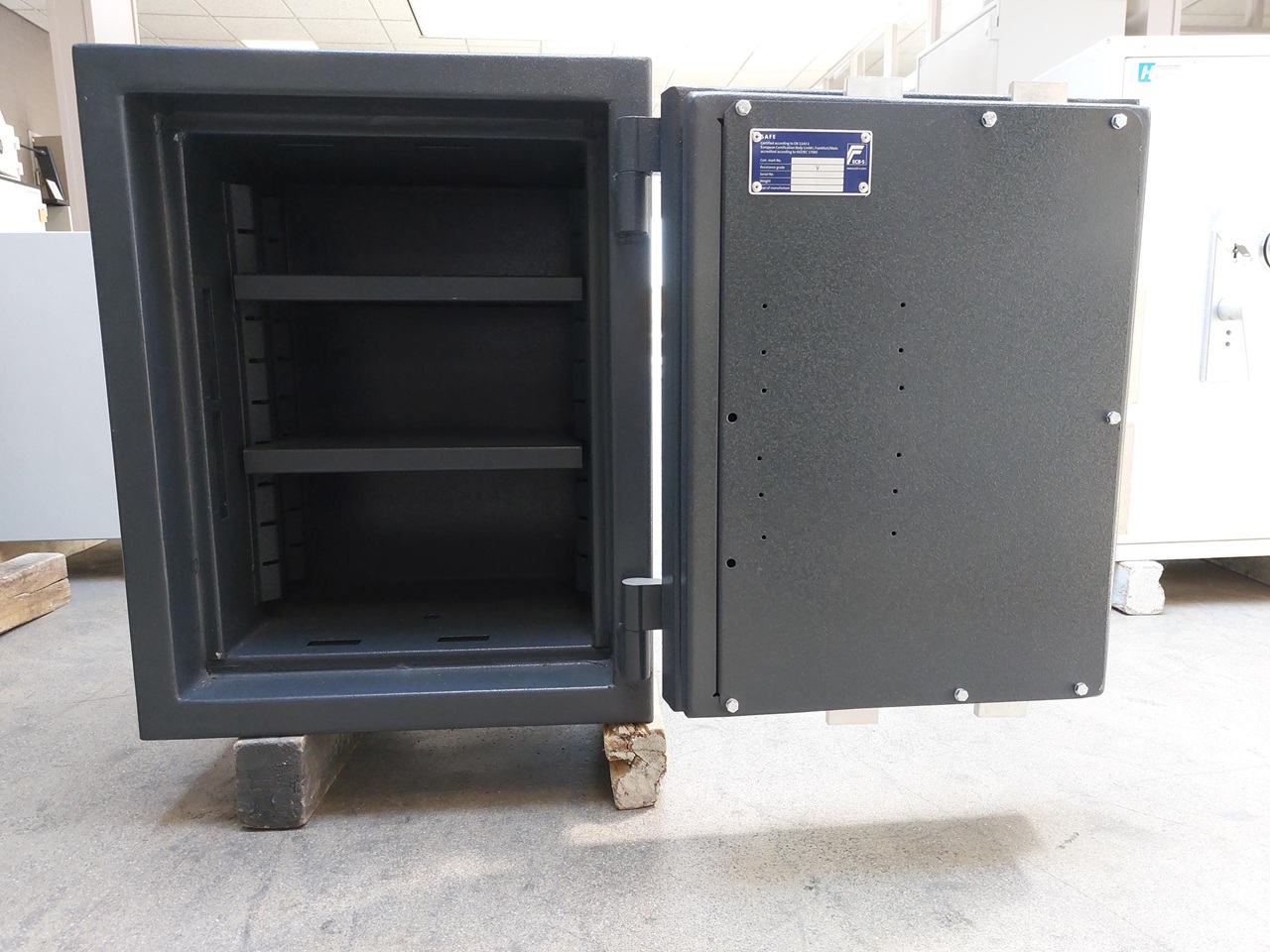

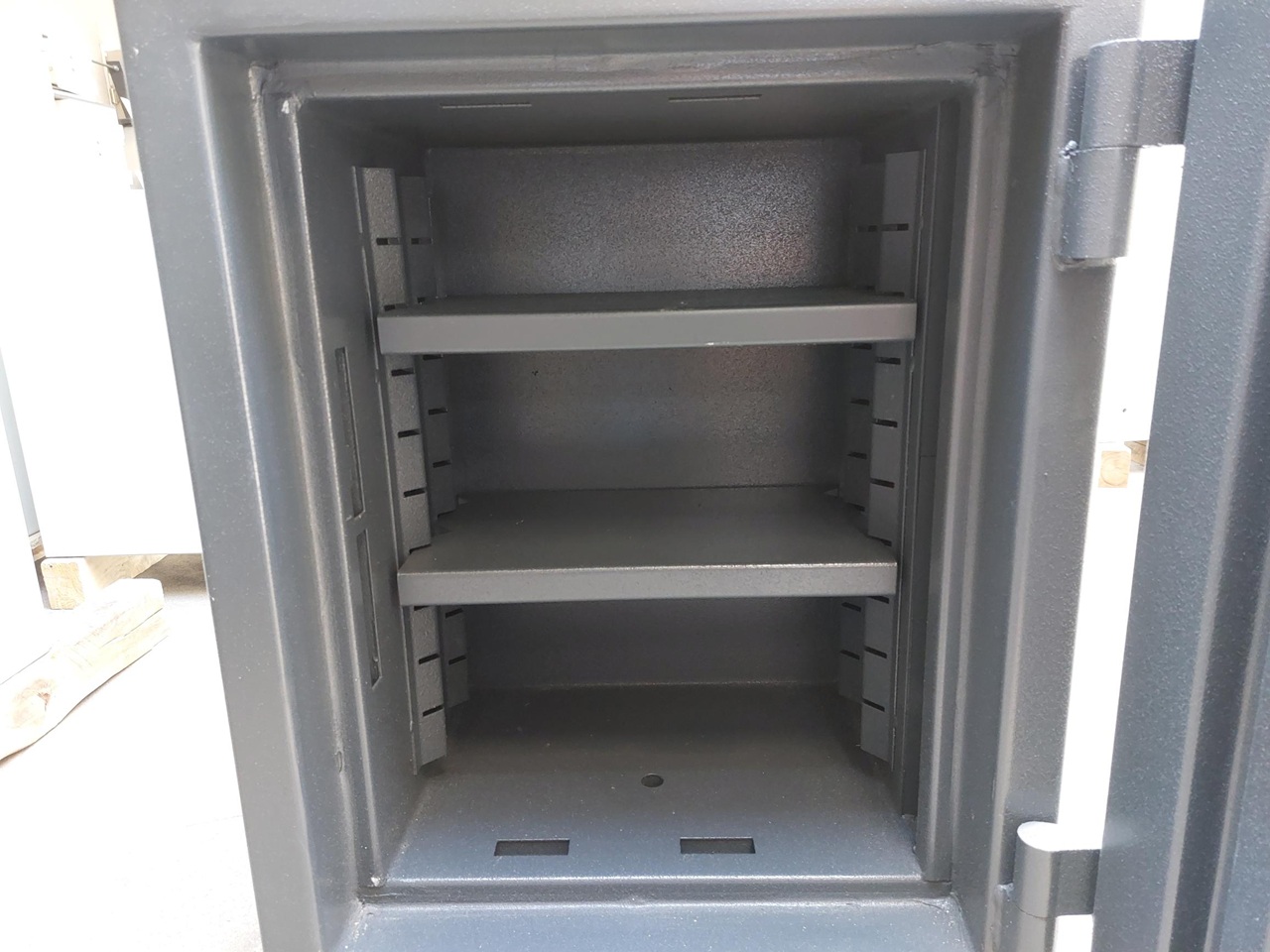

| Shelves | 2 adjustable |
| Weight (kg) | 510 kg. |
| Direction of rotation | Clockwise |
| Colour | RAL 7016 Anthracite |
| Warranty | 2-year warranty |
| Shipping class | 6 |
Artikelnr: 8.1063. Verzendklasse 6.
Merk van den Hoven, model VDH CB5 57.
Certified burglar resistance according to EN 1143-1 standardisation class 5.
Coverage recommendation insurers based on standardisation € 125,000.00. Valuables insurance €250,000.00.
Fire protection according to Din 4102 standards approx. 30 minutes on paper for safe storage of valuables and documents.
Voorzien van een sleutelslot incl. 2 sleutels en een elektronisch cijferslot.
Indien gewenst is het mogelijk om de kluis bij plaatsing door Van den Hoven te laten verankeren aan de vloer d.m.v. 1 stuk chemisch anker aan de vloer.
The Money and Value Storage Association (VGW) recommends that safes, up to a weight of 1,000 kg should be properly anchored so that they provide sufficient resistance to being taken away quickly. In 91% of burglaries where a safe is found, it was taken rather than opened on the spot.
Don't take a risk and anchor your safe properly!
The segment anchor is supplied with your safe as standard. This is the lightest anchor in Van den Hoven's range for a concrete foundation.
| Pull-out value in kg: | 560 |
| Drill diameter in mm: | Ø12 |
| Drilling depth in mm: | 65 |
| Minimum floor thickness in mm: | 90 |
The heavy-duty anchor has a higher pull-out value than the segment anchor, sits tightly in the anchoring hole, and can be dismantled after assembly, making it extremely suitable for safes with floor and wall anchoring.
| Pull-out value in kg: | 900 |
| Drill diameter in mm: | Ø14 |
| Drilling depth in mm: | 85 |
| Minimum floor thickness in mm: | 100 |
The anchor rod with chemical paste has the highest pull-out value and does not cause tension in the floor and/or wall. The glass tubes with anchor rods can be installed without special tools. All you need is a drill and a hammer.
| Pull-out value in kg: | 1600 |
| Drill diameter in mm: | Ø14 |
| Drilling depth in mm: | 110 |
| Minimum floor thickness in mm: | 150 |
When floor and wall anchoring both require chemical anchoring, we recommend using anchor rods with chemical paste in the floor and an anchor rod with chemical sleeve for the back. Assembly of the chemical sleeve requires special tools and can only be carried out by Van den Hoven.
| Pull-out value in kg: | 1500 |
| Drill diameter in mm: | Ø22 |
| Drilling depth in mm: | 100 |
| Minimum floor thickness in mm: | 150 |
In mechanical anchoring by Van den Hoven, heavy-duty anchors are used as standard. Chemical anchoring uses anchor rods with chemical paste with a higher pull-out value than glass impact anchors as standard.
Proper anchoring of the safe is only possible with a proper foundation. Choose a suitable place for your safe on a concrete floor and/or against a concrete wall. For lighter safes, anchoring in the floor and wall is best. Also take into account the dismantling of the safe. Dismantling is always possible except when anchoring to the floor and wall using regular anchors. Dismantling with floor and wall anchoring is only possible if you also choose anchoring with the chemical sleeve. Safes that are only anchored to the floor or wall can always be dismantled.
All VDH safes under 1,000 kg are fitted as standard with at least two anchoring holes in the floor. We recommend chemically anchoring your safe because this gives the highest pull-out value and because these anchors are placed tension-free.
